Wave Single lever shower mixer for concealed installation

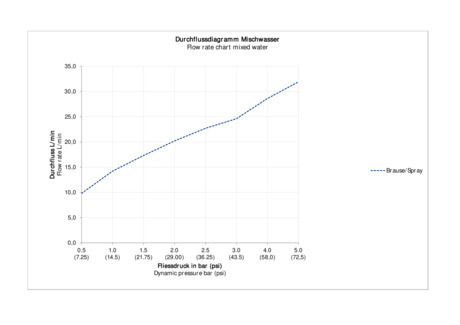

Single lever shower mixer for concealed installation, WA4210012010 Chrome, Flow rate (3 bar): 22,5 l/min
Single lever shower mixer for concealed installation, WA4210012010 Chrome, Flow rate (3 bar): 22,5 l/min
Single lever shower mixer for concealed installation, WA4210012010 Chrome, Flow rate (3 bar): 22,5 l/min
Single lever shower mixer for concealed installation, WA4210012046 Black Matt, Flow rate (3 bar): 22,5 l/min
Single lever shower mixer for concealed installation, WA4210012
Single lever shower mixer for concealed installation, WA4210012
Single lever shower mixer for concealed installation, WA4210012
Item may differ from picture. Decorations and accessories are not included.
Số hiệu sản phẩm WA4210012
Number of outlets: 2, Connection type for water supply connection: Basic Set, Ceramic cartridge, Consumer selection: Showerhead, Hand shower, Outlet/Diverter: Diverter valve, Number of outlets: 2, recommended operating pressure: 1 - 5 bar, Escutcheon shape: Round, Including functional unit, Including trim parts
Design by Duravit

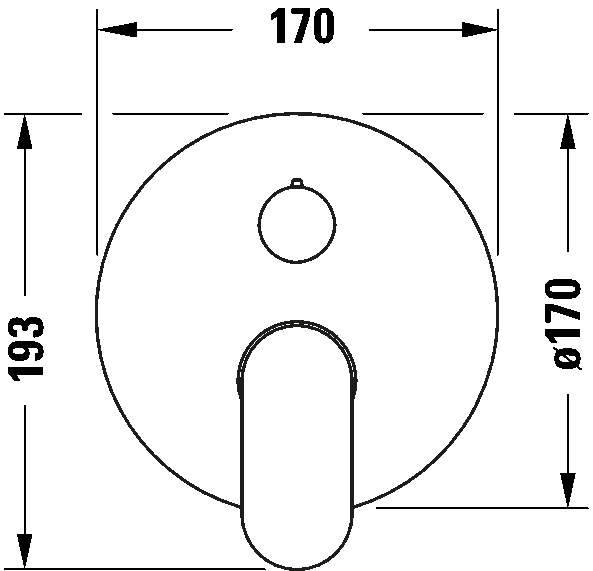

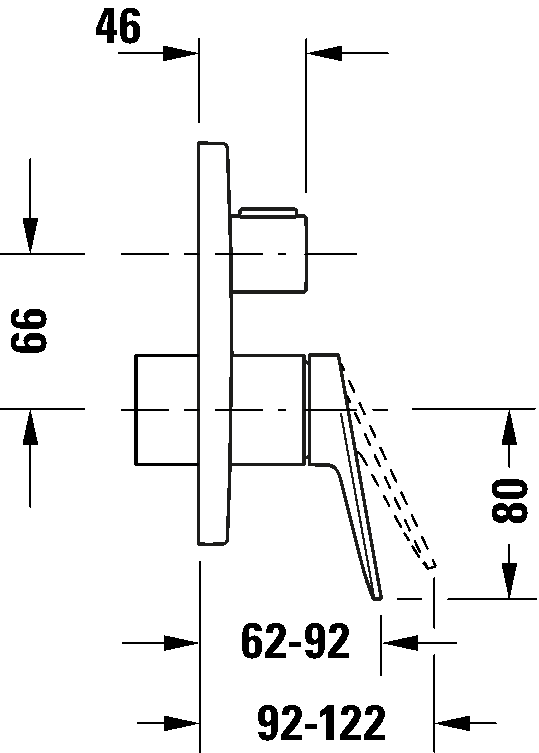

Dimension
170 x 92 mm
Variants
Colors
Color Chrome (10)
Color Black Matt (46)
Facebook
Twitter
E-Mail
Yêu thích
Necessary accessory for WA4210012010
Basic Set
#GK0900000
Dimensions of water supply connection: DN 15, Shut-off valve: No
Basic Set
#GK0900001
Shut-off valve: Yes
Suitable accessories
Hand shower 1jet
#UV0650013
Spray mode: Rain, Dimensions of water supply connection: 1/2", Silicone nubs
Hand shower 3jet
#UV0650015
Spray mode: SoftRain, Rain, IntenseRain, Dimensions of water supply connection: 1/2", Spray mode selection: Rotating blasting disc, Silicone nubs
Hand shower 3jet MinusFlow
#UV0652015
MinusFlow, Spray mode: SoftRain, Rain, IntenseRain, Dimensions of water supply connection: 1/2", Spray mode selection: Rotating blasting disc, Flow rate (3 bar): 9 l/min, Silicone nubs
Hand shower 3jet Click!
#UV0650017
Spray mode: Rain, Pulse, Mono, Dimensions of water supply connection: 1/2", Spray mode selection: Push button, Silicone nubs
Hand shower 3jet Click! MinusFlow
#UV0652017
MinusFlow, Spray mode: Rain, Pulse, Mono, Dimensions of water supply connection: 1/2", Spray mode selection: Push button, Flow rate (3 bar): 9 l/min, Silicone nubs
Showerhead 1jet 230
#UV0660017
Material: Plastic, Showerhead angle adjustable, Type of mounting: Ceiling mount, Wall installation, Round, Diameter of showerhead: 230 mm, Dimensions of water supply connection: 1/2", Spray mode: Rain
Showerhead 1jet 230 MinusFlow
#UV0662017
Material: Plastic, Showerhead angle adjustable, MinusFlow, Type of mounting: Ceiling mount, Wall installation, Spray mode: Rain
Showerhead 1jet 250
#UV0660018
Material: ABS, Showerhead angle adjustable, Type of mounting: Ceiling mount, Wall installation, Round, Diameter of showerhead: 250 mm, Dimensions of water supply connection: 1/2", Spray mode: Rain
Showerhead 1jet 250 MinusFlow
#UV0662018
Material: Plastic, Showerhead angle adjustable, MinusFlow, Type of mounting: Ceiling mount, Wall installation, Dimensions of water supply connection: 1/2", Spray mode: Rain
Showerhead 1jet 300
#UV0660020
Material: Stainless steel, Showerhead angle adjustable, Type of mounting: Ceiling mount, Wall installation, Dimensions of water supply connection: 1/2", Spray mode: Rain
Showerhead 1jet 300
#UV0660031
Material: Stainless steel, Showerhead angle adjustable, Type of mounting: Ceiling mount, Wall installation, Dimensions of water supply connection: 1/2", Spray mode: Rain
wall outlet
#UV0630009
Round, Non-return valve: Individually, in the hose connection, Escutcheon shape: Round, Dimensions of water supply connection: DN 15
wall outlet
#UV0630010
Square, Non-return valve: Individually, in the hose connection, Escutcheon shape: Square, Hand shower holder: Fixed, Dimensions of water supply connection: DN 15
Shower hose
#UV0610006
Rotation lock: Yes, Dimensions of water supply connection: 1/2", Nut shape: Conical
Shower hose
#UV0610007
Rotation lock: Yes, Dimensions of water supply connection: 1/2", Nut shape: Conical
Shower hose
#UV0610008
Rotation lock: Yes, Dimensions of water supply connection: 1/2", Nut shape: Conical
Shower arms
#UV0670025
Escutcheon shape: Round
Shower arms
#UV0670026
Shower arm length: 300 mm, Escutcheon shape: Round
Shower arms
#UV0670027
Type of mounting: Wall installation, Shower arm length: 210 mm, Escutcheon shape: Round
Shower arms
#UV0670028
Type of mounting: Wall installation, Shower arm length: 410 mm, Escutcheon shape: Round
Shower arms
#UV0670037
Escutcheon shape: Square
Hand shower 1jet MinusFlow
#UV0652013
MinusFlow, Spray mode: Rain, Dimensions of water supply connection: 1/2", Flow rate (3 bar): 9 l/min, Silicone nubs
Hand shower 1jet
#UV0650014
Spray mode: Rain, Dimensions of water supply connection: 1/2", Silicone nubs
Hand shower 1jet MinusFlow
#UV0652014
MinusFlow, Spray mode: Rain, Dimensions of water supply connection: 1/2", Flow rate (3 bar): 9 l/min, Silicone nubs
Hand shower 3jet
#UV0650016
Spray mode: SoftRain, Rain, IntenseRain, Dimensions of water supply connection: 1/2", Spray mode selection: Rotating blasting disc, Silicone nubs
Hand shower 3jet MinusFlow
#UV0652016
MinusFlow, Spray mode: SoftRain, Rain, IntenseRain, Dimensions of water supply connection: 1/2", Spray mode selection: Rotating blasting disc, Flow rate (3 bar): 9 l/min, Silicone nubs
Showerhead 1jet 100
#UV0660022
Material: Plastic, Showerhead angle adjustable, Type of mounting: Ceiling mount, Wall installation, Dimensions of water supply connection: 1/2", Spray mode: Rain
Showerhead 1jet 200
#UV0660019
Material: Stainless steel, Showerhead angle adjustable, Type of mounting: Ceiling mount, Wall installation, Round, Diameter of showerhead: 200 mm, Dimensions of water supply connection: 1/2", Spray mode: Rain
Showerhead 1jet 400
#UV0660021
Material: Stainless steel, Showerhead angle adjustable, Type of mounting: Ceiling mount, Wall installation, Dimensions of water supply connection: 1/2", Spray mode: Rain
Showerhead 1jet 200
#UV0660030
Material: Stainless steel, Showerhead angle adjustable, Type of mounting: Ceiling mount, Wall installation, Square, 200x200 mm, Dimensions of water supply connection: 1/2", Spray mode: Rain
Shower arms
#UV0670036
Escutcheon shape: Square
